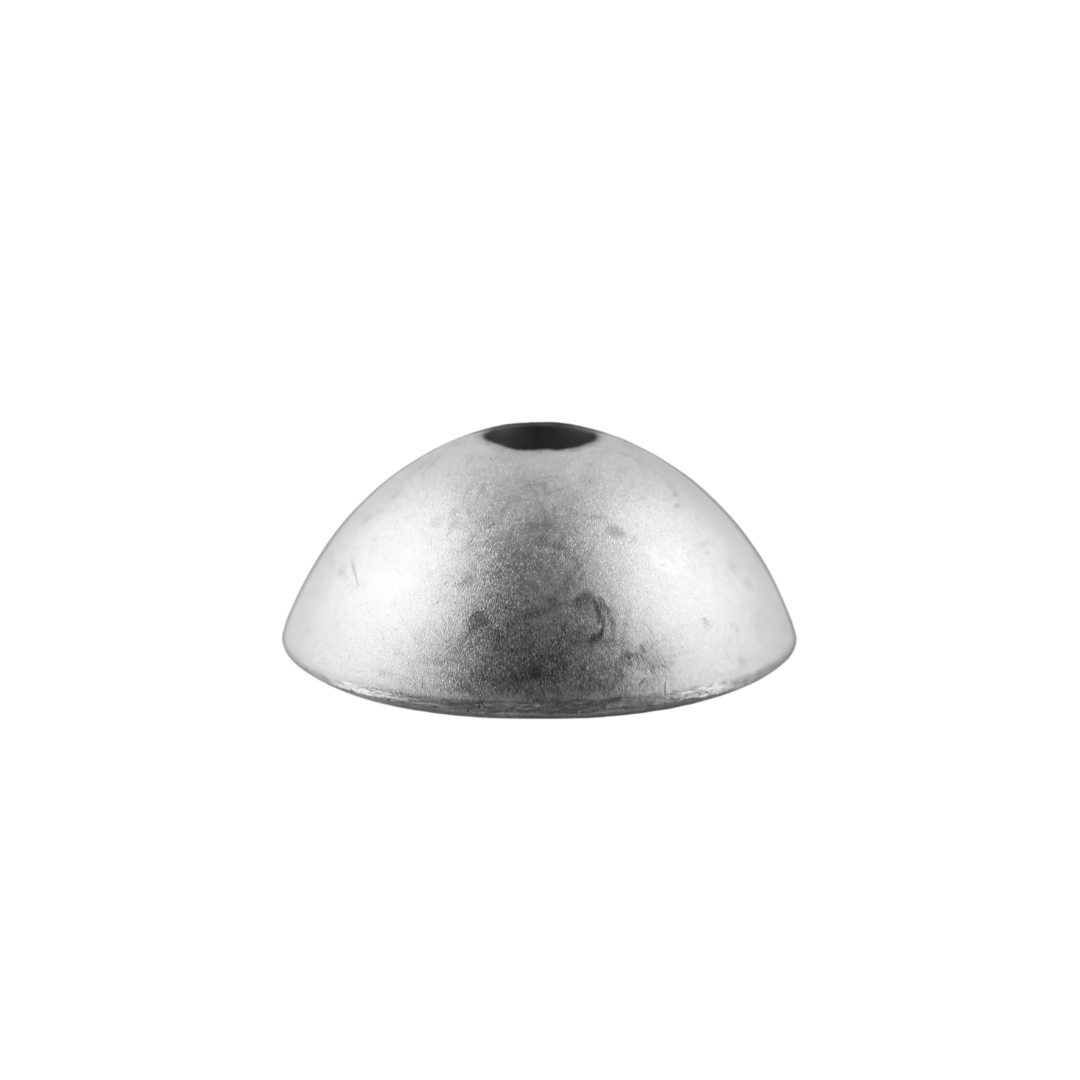

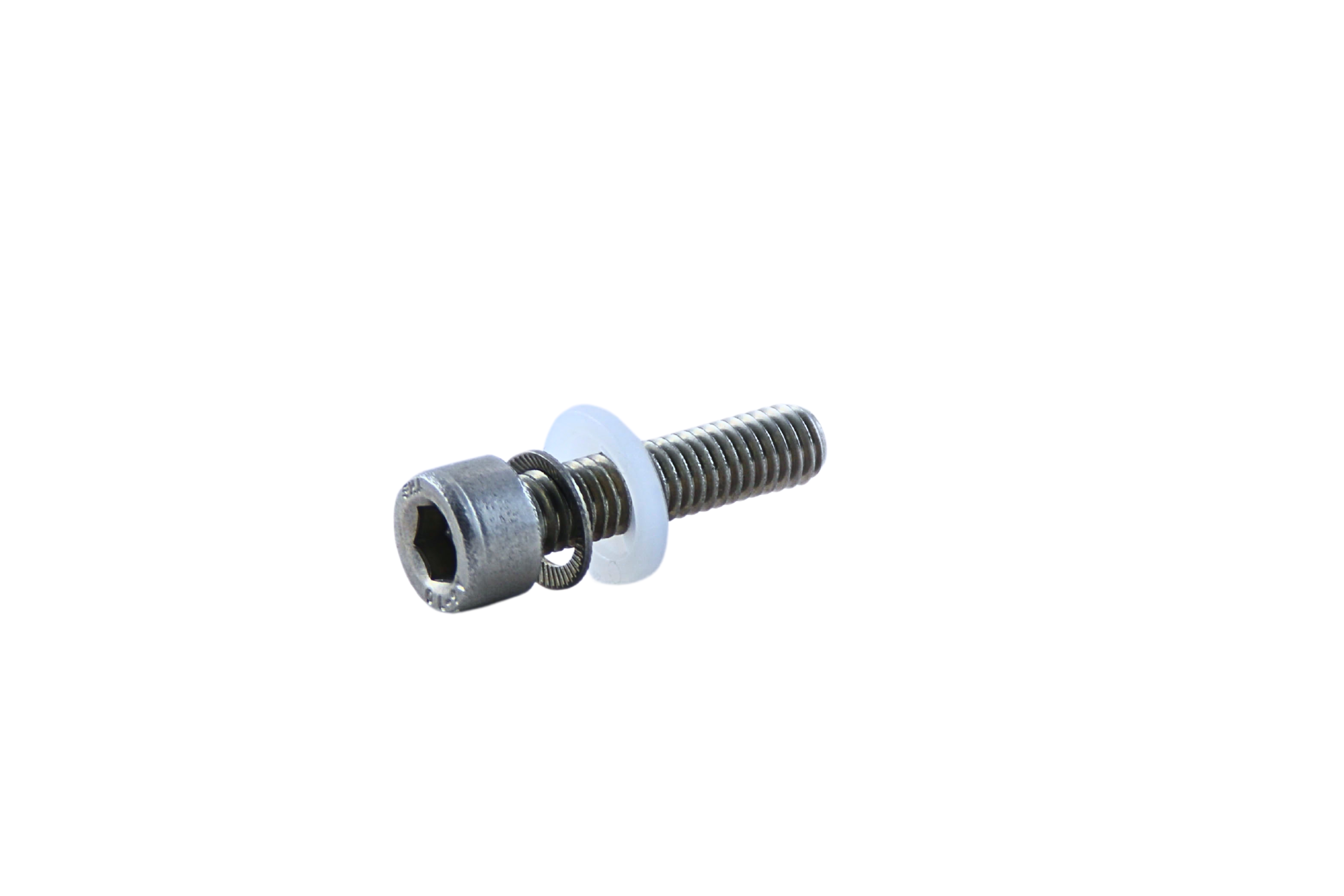

Variprofile anode for VP64 and VP76. Available in zinc (salt and brackish water), magnesium (fresh water) and aluminum (brackish water).Please select the propeller type and material when ordering. The anode fixing screws are NOT included in the scope of delivery. These are available here in our online store.
Variprop anode for DF-80, DF-107, DF-112 and DF-128/140. Available as zinc (salt- and brackish water), magnesium (fresh water) oder aluminium. The Variprop DF 128/140 anode is only available as a zinc anode.
Please select the propeller type and the anode material for your order. The anode screws are NOT included. They are available here in our online shop as well.

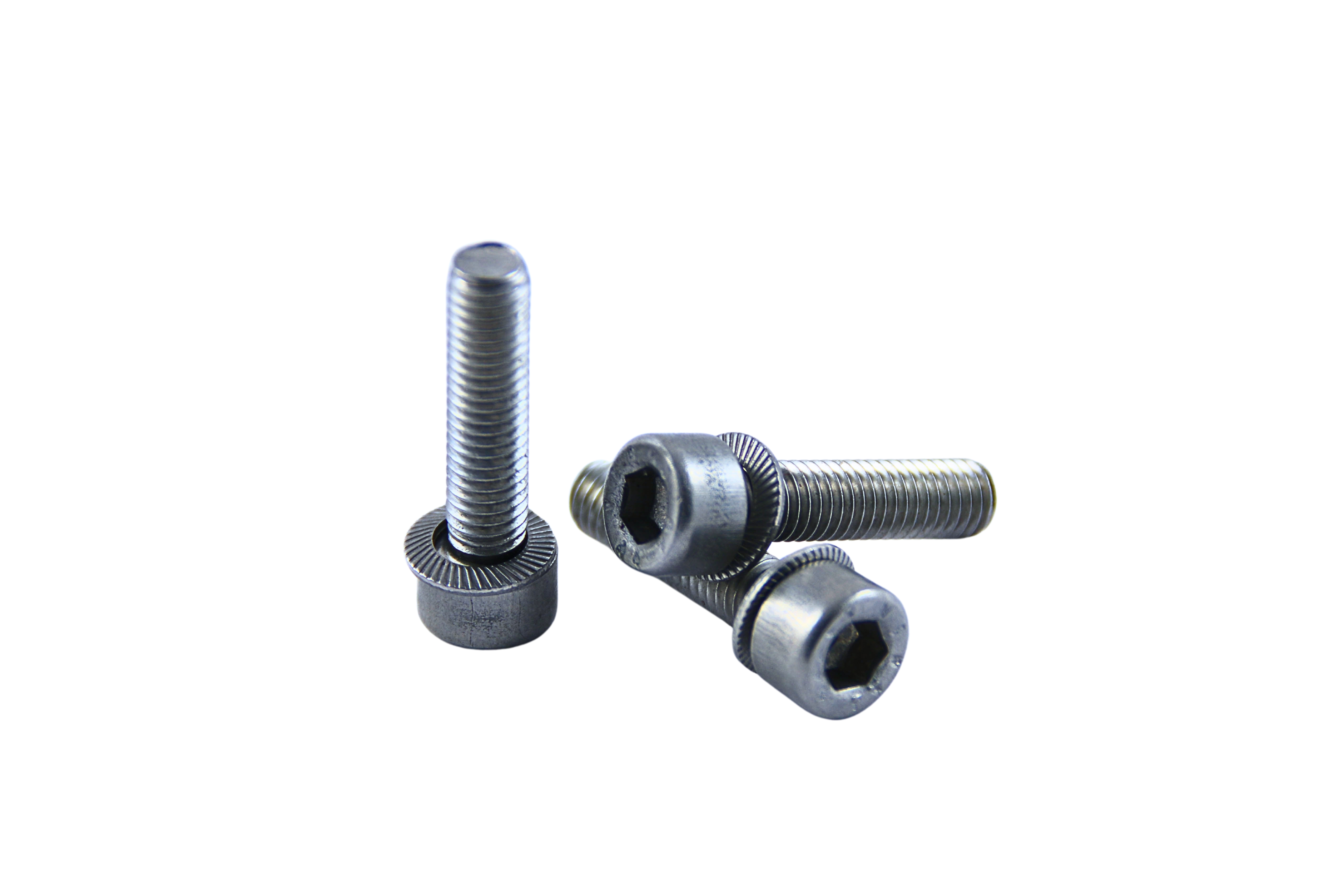

Fixing screw SET for zinc anode Variprop DF/GP80 - DF140 including of: 3x hexagon socket screw and 3x lock washerIMPORTANT: The lock washers guarantee that the anode is secured!
Hexagon screw as blanking plug for both the VARIPROP and the VARIPROFILE feathering propeller: VARIPROP Up to and including year of manufacture 1997 = M6x6mm From year of manufacture 1998 = M5x6mm VARIPROFILE All years of manufacture = M5x6mm Please select your size.
LOCTITE low (low strength) threadlocker. Prevents the screws from loosening due to vibration, yet easy to remove. Fl. 3ml LOCTITE medium (medium strength) threadlocker. Prevents the screws from loosening due to vibration and seals them at the same time. Fl. 3ml LOCTITE low+medium (low+medium strength) threadlocker. Set: 1x Loctite low + 1x Loctite medium; 3ml each
Corrosion-Stopper, 10 g tube (in ziplock bag)Tef-Gel® is a waterproof, PTFE-based paste that can be used universally. It prevents the blossoming of metal and reliably protects against corrosion between aluminum and stainless steel as well as bronze metals. It can also be used as a seawater-resistant lubricant and as a sealant to stop water ingress. Always install your screws and bolts with Tef-Gel® and everything will be easy to undo, even after intensive use in seawater. The same applies to shroud tensioners. Tef-Gel® is not dangerous to health and has no hazard labels. It is also eco-friendly. The product can be stored for a period of more than 10 years. Note: Please note that due to shipping restrictions for liquids, this product can´t be shipped outside Germany.

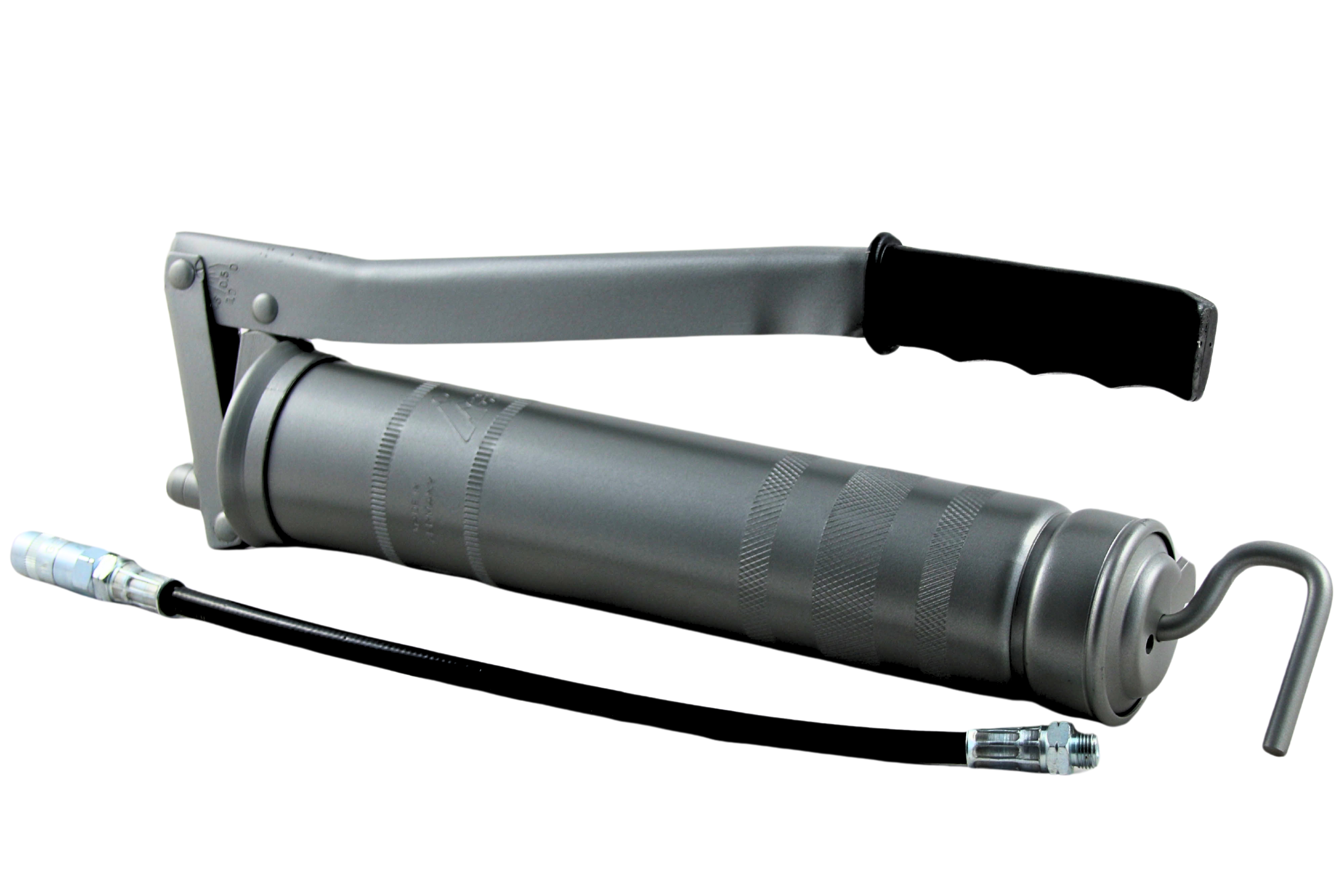

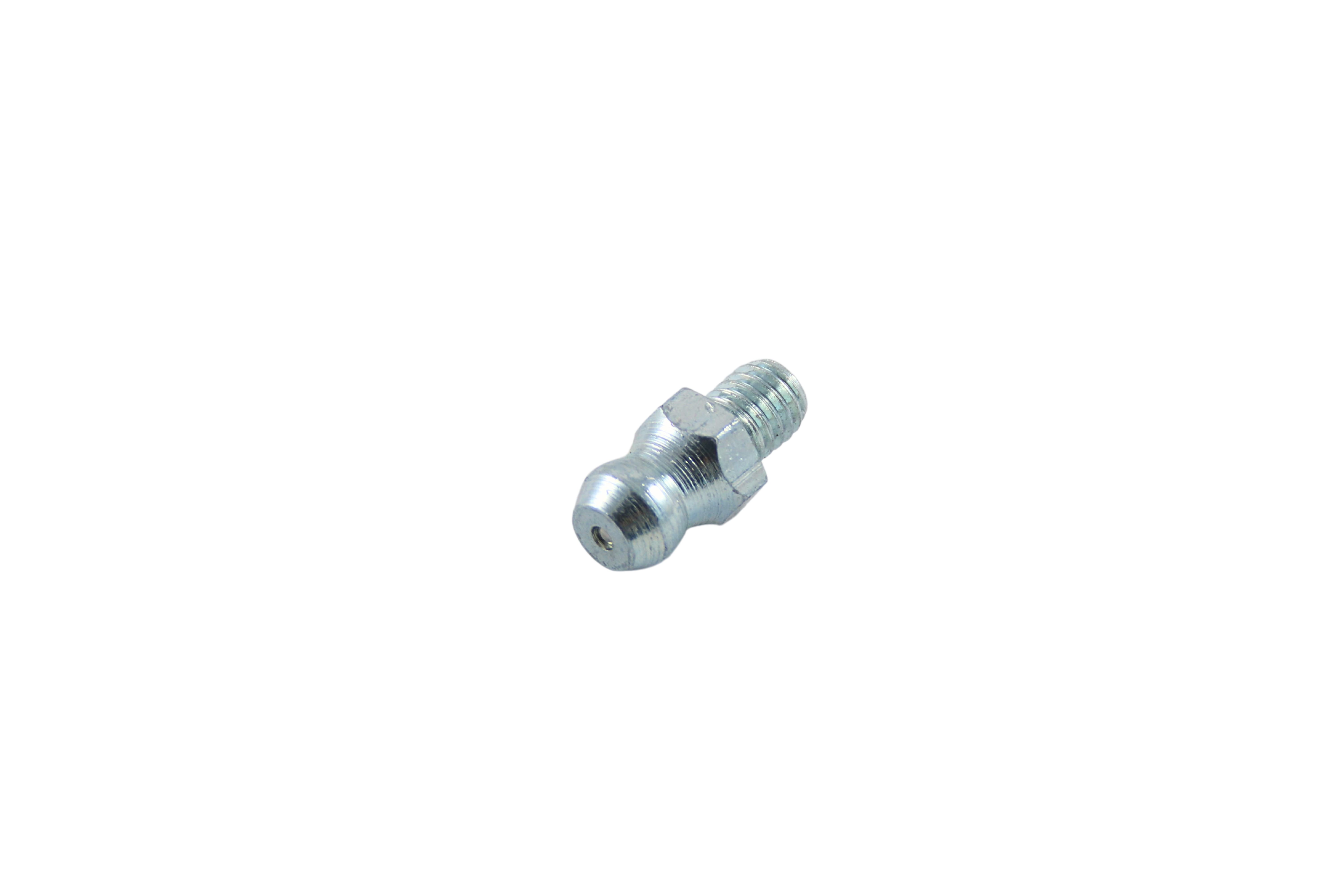

The service package includes everything you need for independent maintenance of the propeller. The package is available here in the store for the DF/GP-80, 107, 110, 112, 128 and 140 and consists of: 1x grease nipple M51x hand lever grease gun1x cartridge of special EP/SAL grease1x zinc anodeFor the Variprop DF/GP-80 & DF/GP-107 we also offer the service package optionally with magnesium (sweet water) and aluminum anode (brackish water).
For sizes without anode specification, the zinc anode (salt and brakish water) is automatically supplied.
To order, please select your propeller type.
The service pack includes everything you need in order to do the maintenance of your propeller yourself and consists of:
1x grease nipple M5, 1x manual lever grease gun, 1x cartridge of special grease EP/SAL, 1x zinc anode
To place an order, please select your propeller type.

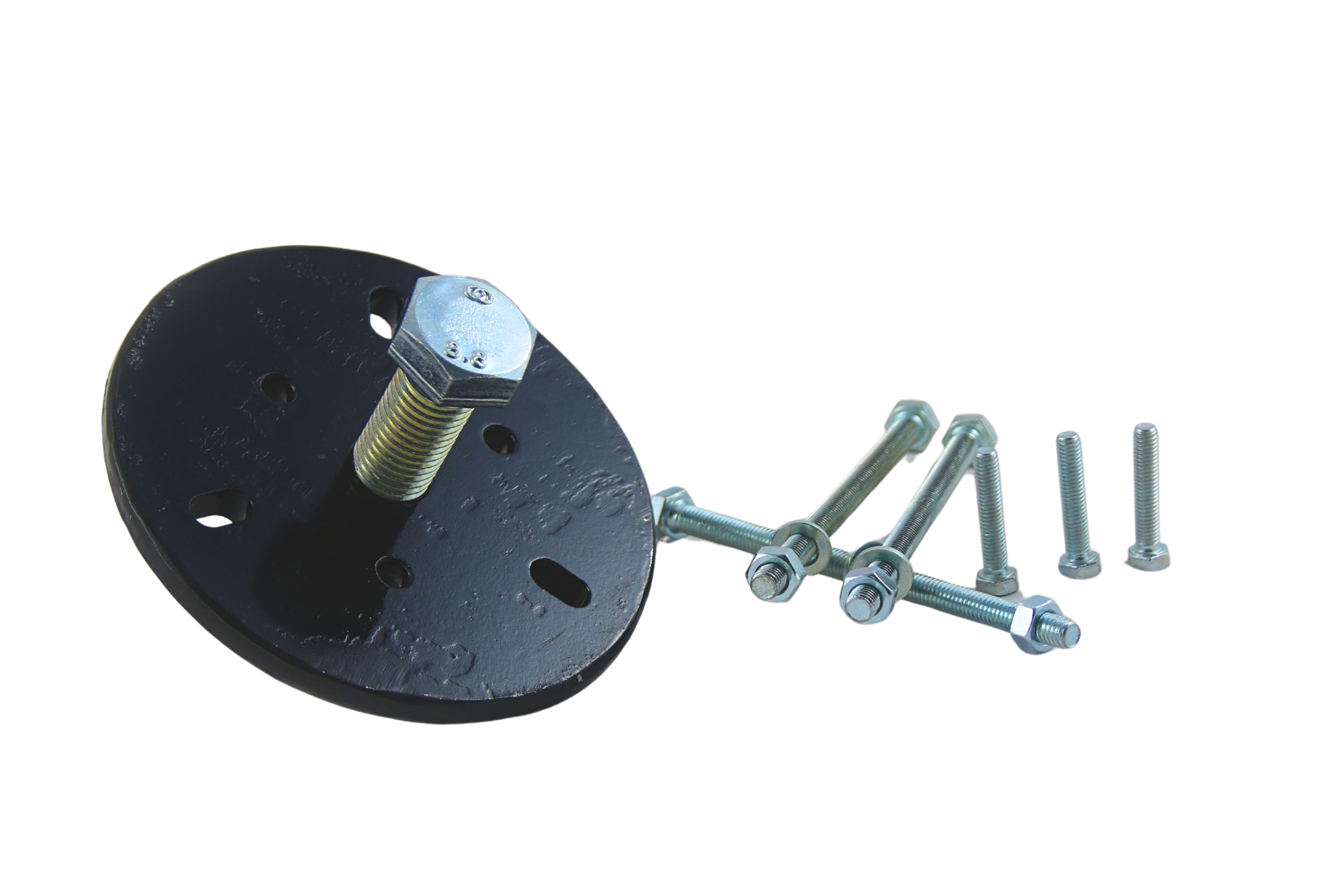

Puller for Variprop DF/GP80 - DF140 for 2-, 3- and 4-blade feathering propellers.
The puller helps you to easily remove a stuck propeller from your shaft. To order, please select your propeller type and the number of blades. (2-blade puller not pictured)
Screw set for the VARIPROFILE VP64 and VP76 rotary blade propeller for connecting the saildrive or shaft hub to the propeller head. You will find the respective drawings for the item numbers under "Pictures" and "Downloads PDF" for the individual sets. Please select the desired set. SET for Saildrive - VP64 & VP76 Connection of the SD hub with the rotary blade head (See 1st drawing: items 6 and 7) Contents: 6x flat head screw 6x lock washerSET for shaft - VP64 Connection of the shaft hub with the rotary blade head (See 2nd drawing: items 6, 7 and 8) Contents: 3x cylinder head screw 3x lock washer 3x grub screw, pointed SET for shaft - VP76 Connection of the shaft hub with the rotary blade head (See 2nd drawing: items 6, 7 and 8) Contents: 3x cylinder head screw 3x lock washer 3x grub screw, pointed
The gland packing is pressed onto the shaft with the stuffing box piston, ensuring an even and continuous seal. Available in various sizes. Please select the desired width and length when ordering.
The shaft seal prevents grease from escaping to the outside and water from penetrating to the inside! Please select the size based on the shaft diameter.
Buffer for VARIFOLD 3- and 4-blade folding propellers minimize the shock when opening the blades. The hard-wearing rubber or plastic buffers fit securely in the special cut-outs in the saildrive hub.
This ensures that the propeller starts up smoothly without the buffers coming loose. Please select the correct buffer size according to your propeller type and the year of manufacture.
VF-108 <2011
Polyrethane (rubber) buffers for the Varifold 3-blade folding propeller by SPW for the hub-version up to the year of manufacture 2012.
Black, round 20mm x 5mm
VF-108 >2012
Buffers for the Varifold folding propeller 3- und 4-blade (VF-108 & VF-120) for the hub-version, year of manufacture 2013 and later; you need 3 or 4 buffers.
White, round 24/19mm x 10mm with pin
Puller for the Varifold folding propeller, available for 2- and 3-blade propellers. The puller helps you to easily remove a stuck propeller from the shaft. Please select a propeller type when ordering.
Replacement anode holder for VARIFOLD folding propeller VF-108. This is required to fix the zinc anode; included with the purchase of a new VARIFOLD propeller.
Our SPW VARISEAL stuffing box offers 3-fold safety thanks to a 3-chamber system. This 3-chamber system includes the following components:
1. Tallow band seal: The tallow band seal is pressed onto the shaft with the stuffing piston, ensuring an even and continuous seal.
2. Grease chamber: An additional grease cushion inside the
bush (supply by means of a grease accumulating bush or grease gun)
provides the shaft with excellent sliding properties. Thereby, firstly
safety is guaranteed, and, secondly, the danger of the shaft running in -
due to dry tallow bands - is minimized many times over!
3. Shaft seal: A shaft seal prevents grease from escaping to the outside and water from penetrating to the inside!
4. Including the tube and 4 heavy-duty clamps.
ATTENTION: Please state the shaft- and stern tube diameter when ordering!
The following standard sizes are available from stock (please see picture "Stopfbuchse Zusammenbau 2023 eng"):
Ø Seals in mmØ Sterntube in mmA in mmB in mmC in mm2035 - 50149104Ø502235 - 50149104Ø502540 - 50149104Ø503045 - 55149104Ø553245 - 55149104Ø553550 - 70149104Ø653855 - 70149104Ø654060 - 70149104Ø704570 - 80184119Ø805070 - 90194129Ø805580 - 95194133Ø1106080 - 95224154Ø110
